Introducing the brightest and most durable motorcycle driving lights that won't break the bank. Engineered based on a decade of customer feedback, our DL Series Driving Lights are purpose-built to deliver best-in-class beam performance, unmatched durability, and our signature dimming technology at a price point that is more approachable to new riders, younger riders, and our rapidly growing international customer base!
How can they be this good and so affordable at the same time? Thanks to our single-piece TIR optic and robotically sealed construction, we are able to reduce the number of parts, accelerate assembly time, and reduce the overall production costs without sacrificing any changes to our top-bin LEDs, circuitry, or optical design. The result is an indestructible and submersible light pod that can deliver more light per dollar than any of our competitors. All DL Series lamps are available in white, amber, or selective yellow beam options are plug-and-play compatible with all DENALI lighting harnesses and controllers.

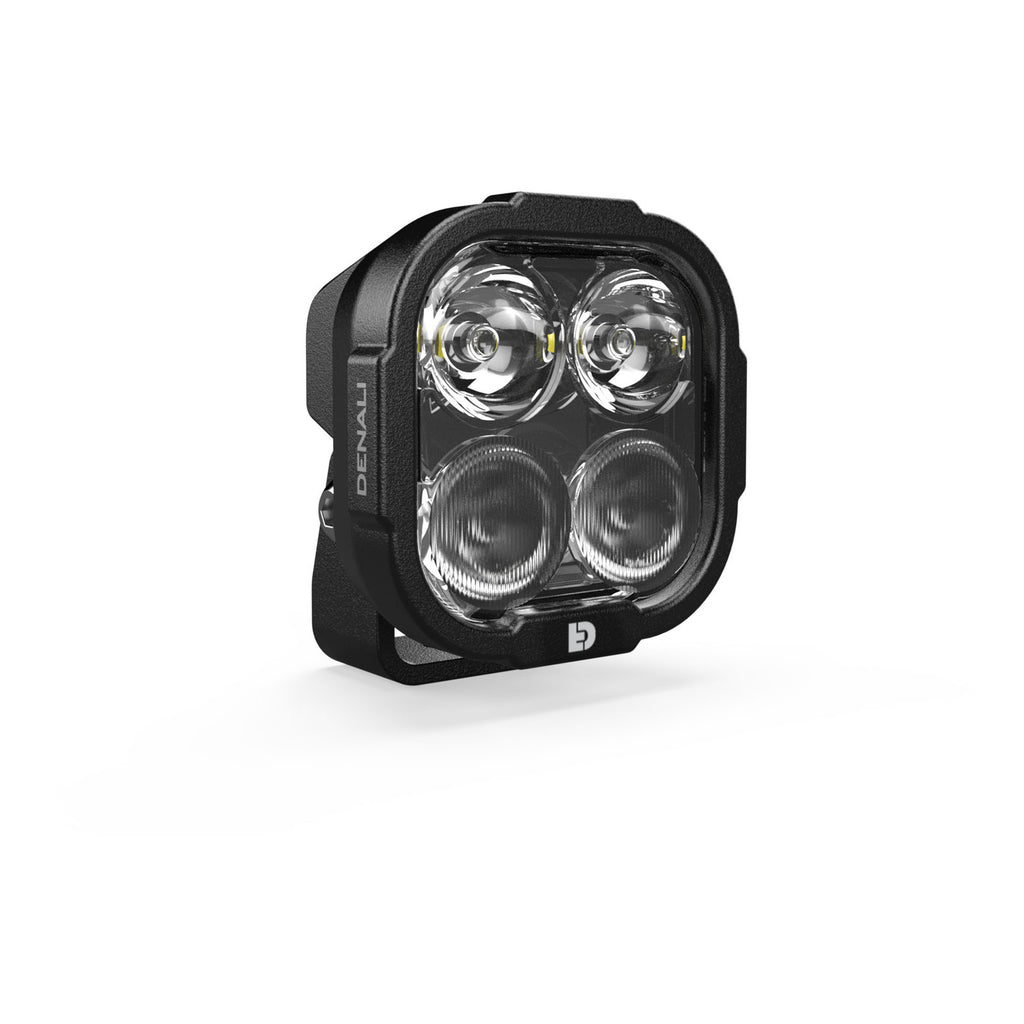

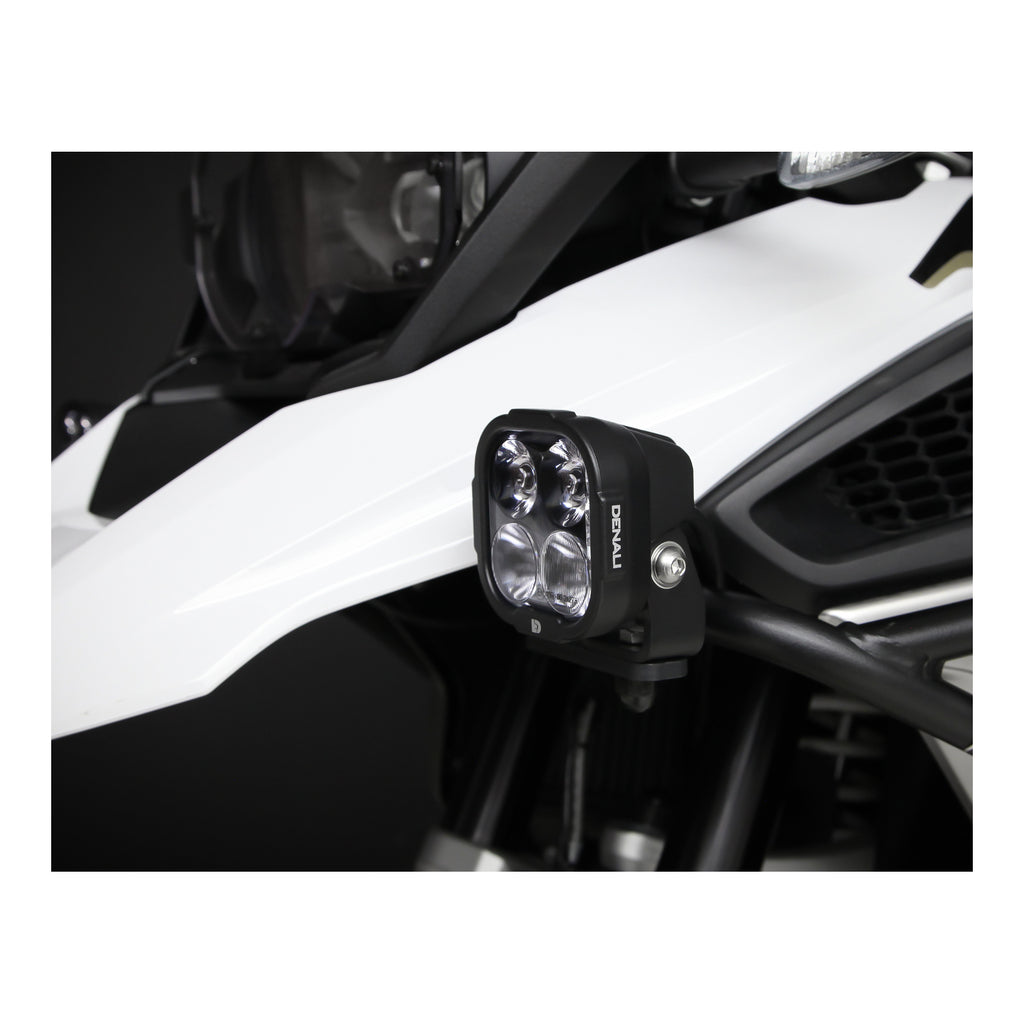

The DL4 features a perfected hybrid driving beam and is the ideal option for your primary auxiliary driving lights on small to medium-sized bikes. It is also small and light enough that it can be mounted in lower fender applications on larger ADV bikes.
Features:
-
HiDrive LEDs 6,800 Lumens Per Pair – Top-bin CREE LEDs driven at 8 watts each deliver a remarkably powerful beam in a beefy 9-LED square package.
-
Oversized TIR Optics - Perfected Hybrid Driving Beam – Our proprietary TIR optics distribute the beam of light more efficiently than traditional reflector optics, giving our driving beam unmatched distance and width from the most compact housing possible.
-
DataDim™ Plug-and-Play Dimming – Our signature 3-wire design uses dedicated dimming wiring for maximum reliability and plug-and-play connection to all DENALI light harnesses, DialDim, and CANsmart Controllers.
-
DrySeal™ Sealed Beam Construction – Our patented technique robotically seals the lens and uses internal potting at the cable entry to guarantee 100% waterproof submersible performance even when connectors are removed.
-
Overbuilt Not Overpriced – Our 4mm thick powder-coated steel brackets and robust heatsink enable an impressive 21grms vibration rating, while our Polycarbonate lenses are reinforced with UV hard coating.
-
ECE Compliant Driving Beam – Our hybrid driving beam is ECE certified for street-legal use as a primary or auxiliary high beam in the European Union. Yellow and amber lenses are not compliant for street-legal high beam use.
Specifications (Single | Pair):
-
LED's: Cree XPL HI (8W each)
-
Watts: 32W | 64W
-
Amp Draw: 2.7A | 5.4A
-
Raw Lumens: 3,400 | 6,800
-
Beam Distance: 820' (250m) | 1091' (333m)
-
Beam Width: 157' (48m) | 209' (64m)
-
Connector: DataDim Compatible 3-wire DT
-
Color Temperature: 6000K
-
Operating Voltage: 9-32 VDC
-
Pod Size: 3" x 3" Square x 2" Deep
-
Pod Weight: 1.2 lbs | 2.4 lbs
-
IP Rating: IP68 and 69K Waterproof Submersible and High-Pressure Spray
-
Beam Certification: ECE R149 Driving Beam (Aux High Beam)
-
EMC: R10, CISPR 25, CE, UKCA Compliant
What’s Included:
-
Single light pods include:
- (1x) Light Pod w/ Mounting Hardware
- (1x) 3-wire pigtail
-
Pair of light pods includes:
- (2x) of the above light pods and pigtails
This is a Universal Fit Item. It is designed to fit many vehicles. Universal products may require a vehicle-specific fit kit (sold separately) or other modifications for installation. Universal products are not guaranteed to fit every vehicle. Check the product description for installation requirements.
