Harness the flexibility and intelligence of your Africa Twin's CAN bus
electrical system to make the installation of accessories drastically
easier with the new and improved DENALI CANsmart™ Controller GEN
II.
The DENALI CANsmart™ Controller provides plug-n-play
installation and integrated control of up to four accessories to enable
dozens of customizable settings that can be controlled right from your
Africa Twin switch cluster or the CANsmart™ Accessory Manager
Software.
The CANsmart's four circuits are preprogrammed to connect
and independently control two sets of DENALI lights, a SoundBomb horn, and
our B6 auxiliary brake light.
Gen II - More Features, More
Power, More Versatile

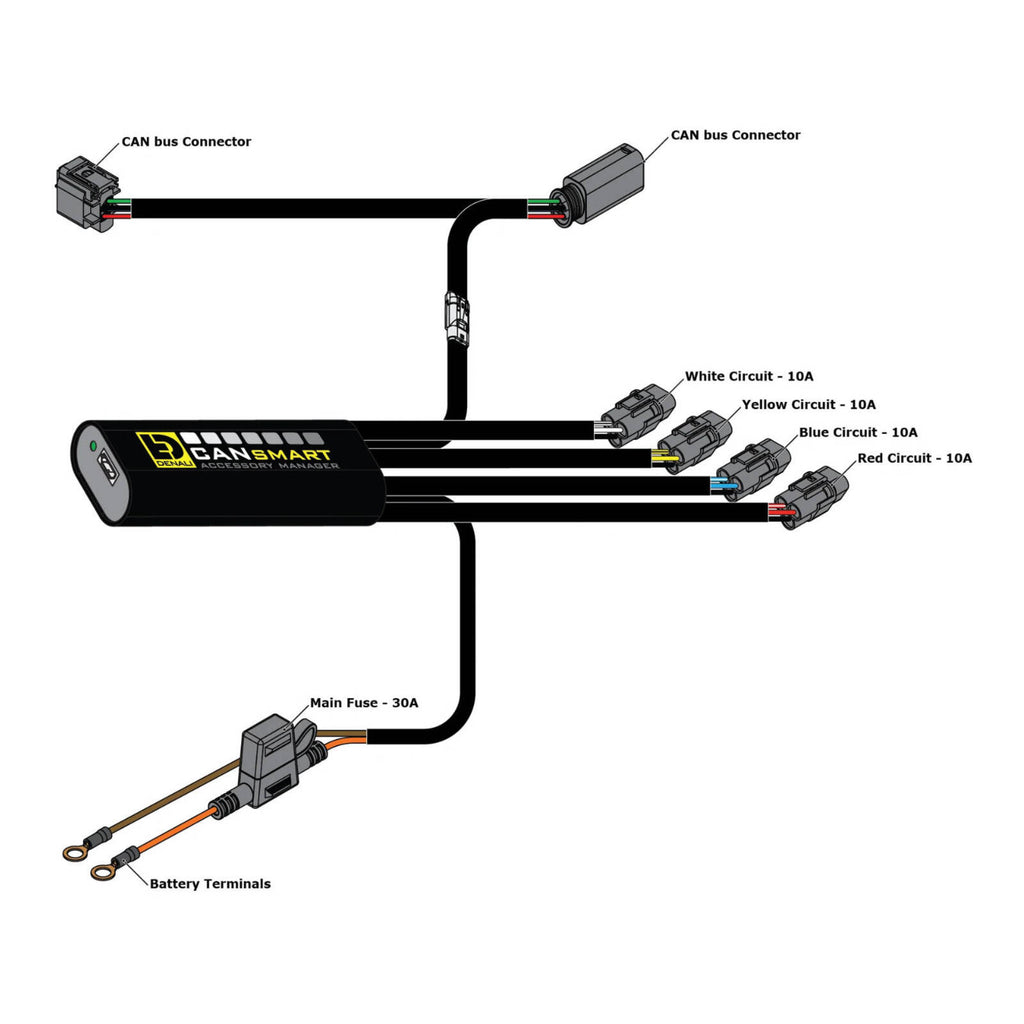

Unlike the Gen I CANsmart, all four
circuits of the Gen II can provide a full 10 amps of continuous power and
each circuit can be configured to run any accessory type. The maximum power
draw for the whole unit remains at 30 amps continuous. The Gen II also
features two new auxiliary light settings. You can now modulate your
auxiliary lights for added conspicuity, and set your left and right side
lights to independently cancel when you activate your corresponding turn
signal
Features:
-
High/Low
Sync- Set auxiliary lights to switch between a programmable
high/low setting with the factory high beam switch.
-
ON/OFF
and Dim- Independently control two sets of lights ON/OFF and
change intensity level (for both day and night) right from your original
vehicle switches.
-
Modulate Lights- Set auxiliary
lights to modulate to increase your visibility to other
motorists.
-
Flash to Pass- Need to get someone's
attention? Pulse your high beam switch three times and your auxiliary
lights will strobe three times fast.
-
Cancel With Turn
Signal- This feature cancels the corresponding auxiliary light
when you turn your turn signal on preventing powerful auxiliary lights from
overpowering your signal.
-
Inverse Flashing With
Hazards- This features flashes your auxiliary lights inversely to
your hazard lights, increasing visibility during roadside
emergencies.
-
Plug & Play Horn Installation-
Quickly and easily connect high-power aftermarket horns like our
SoundBomb™ without having to add an additional harness or
relay.
-
Strobe with Horn- With this feature
selected the CANsmart™ software will automatically strobe your
auxiliary lights when you sound your horn. This feature works whether you
have the factory horn or SoundBomb™ horn
installed.
-
Deceleration Activated "Smart Brake"
Technology- The CANsmart™ reads vehicle speed in real-time
to activate your auxiliary brake light during deceleration before you even
touch the brake. You can adjust the sensitivity and minimum speed at which
the Smart Brake Feature will activate.
-
Flash Pattern
Braking- The CANsmart™ provides four different flash
patterns that make our super bright auxiliary brake lights even noticeable
to motorists behind you. You can set auxiliary brake lights to only flash
under hard braking, flash continuously as your brake is applied or flash
four times rapidly then hold steady (California legal flash
rate).
-
Circuit Function Selector-The Circuit
Function Selector in the CANsmart software will let you run any accessory
of your choice on any of the four circuits. Click on a circuit icon to open
the drop-down menu and make your selection from the list of available
circuit functions.
-
Switched Power Source- The
CANsmart™ provides a universal "accessory" option that simply gives
you clean switched 12V power. That means whatever accessory you connect to
this circuit will turn on and off with your ignition.
-
Delay
Time Out- You can also set the accessories on this circuit to have
a delayed time out. This will keep them powered for up to 30 seconds after
your turn off your bike.
-
On Board Power- The
"accessory" circuit option is ideal for powering your GPS, phone, heated
gear or any other electronic device.
What’s In
The Box?

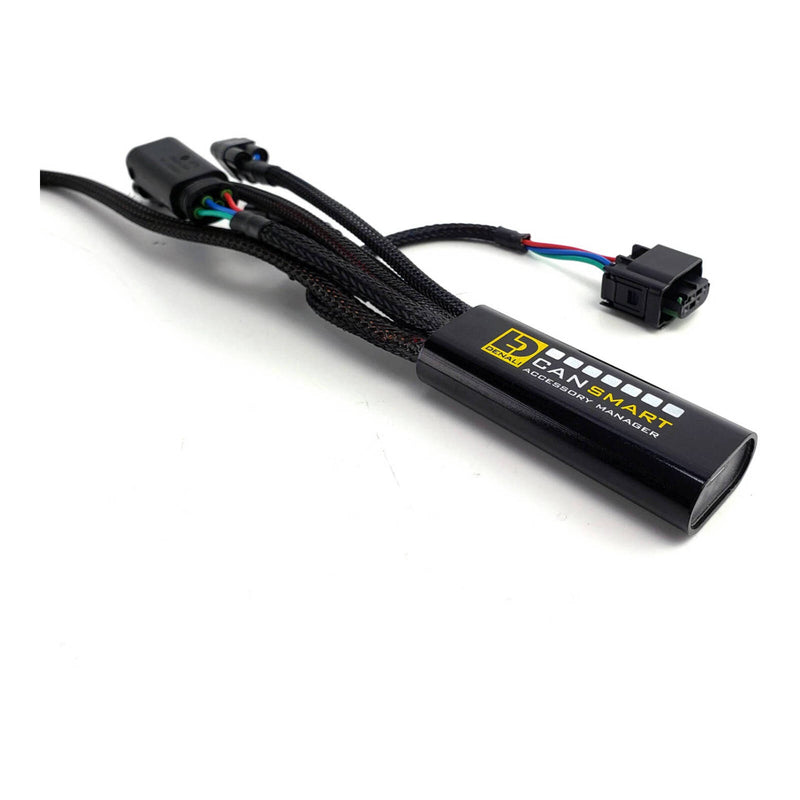

- CANsmart™ Controller
- (x2) 5.5ft
Light Extension Cables
- 5ft SoundBomb Horn Extension
Cable
- B6 Brake Light Wiring
Adapter
- Zip-ties
- Adhesive Hook-and-Loop
Fastener
- Micro USB Programming Cable
